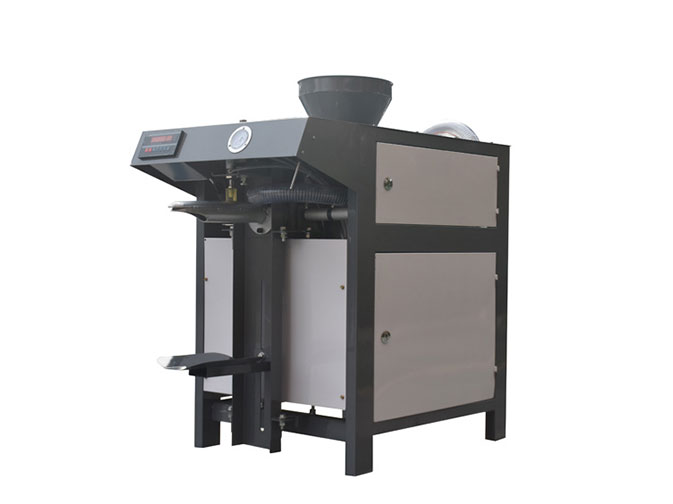

TCY-50M valve port automatic weighing and packaging machine is specially designed for dry mortar, cement, chemical and other industries powder weighing and packaging machine.
TCY-50M valve port automatic weighing and packaging machine is specially designed for dry mortar, cement, chemical and other industries powder weighing and packaging machine.The microcomputer system of the equipment adopts industrial components, STM process production, with small volume, strong function, high reliability, good adaptability and other advantages, set weighing control in one, has a unique anti-interference ability, can be used in bad environment for a long time.
Valve mouth packing machine is suitable for automatic packing of powder, flake, fine particle and powder material with high viscosity.Supporting a number of calcium carbonate, talcum powder factories, such as: pyrophyllite, talcum powder, wollastonite, kaolin, heavy calcium, light calcium, activated carbon, rubber powder, soda, grain powder, starch, sodium silicate, plastic powder, attapulgite clay, bauxite, iron powder, titanium white powder, etc.Mainly used in feed, grain, metallurgy, medicine, petrochemical industry, non-metallic ore, fine chemical industry, inorganic salt, rubber and plastic, leather, fertilizer and other industries.
1. Automatic microcomputer control, intelligent identification, high sensitivity, stable performance, strong anti-interference ability, accurate weighing;
2. New design, no gate, weight, weight, clamping wheel, pin, tension spring and other mechanical weighing mechanism, reduce vulnerable parts, not only reduce maintenance costs, but also improve production efficiency;
3. It can automatically compress, fill, loosen, close and drop the bags, which is easy to operate and durable;
4. simple operation, easy to use, small volume, fast packaging, high precision;
5. The fuselage is all sealed and equipped with dust removal mouth, which is reasonable in structure and durable in use, truly realizing environmentally friendly production;

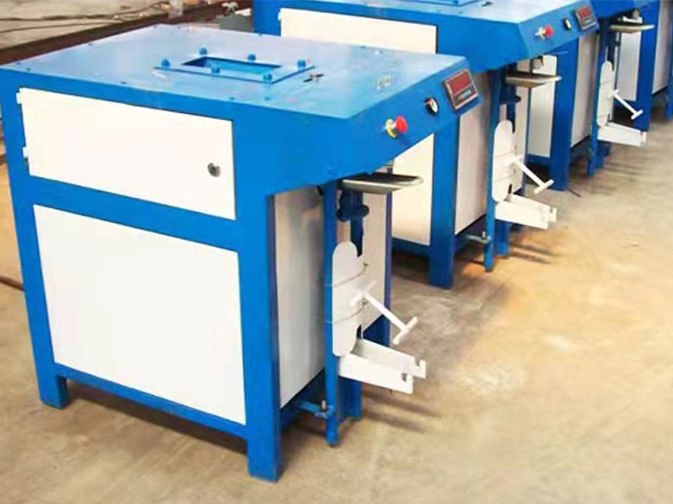

6. the packaging machine mainly uses single mouth, double mouth two models, by double mouth side by side can be composed of 4-6 mouth packaging machine.
A. Ambient temperature for use: -5℃ ~ +40℃-5℃ ~ +40℃
B. Access to dry air pressure: 0.4 ~ 0.6mpa
C. Equipment access power supply: AC380V, three-phase four-wire
D. External dimension of the equipment: length, width and height 1240mm*670mm*1024mm.
Automatic weighing and packaging machine receives analog weight signals through instruments and sensors and processes them into digital signals. It controls contactor and solenoid valve through relay conversion signals to realize motor stop and cylinder action.The discharging principle is to use the high-speed rotation of the power head pick to quickly pull out the material from the outlet, and the internal air blow to form high pressure inside the power head and blow out the material to help the pick out.Its main transport mode is driven by the motor impeller transport, and the gas plays the role of auxiliary discharge (speed up the packaging, prevent material blocking).
Model | TCY-50M | |
Weighting scope | 10-100kg adjustable on panel | |
Discharge port qty. | 1pic | |
Capacity | 8-10t/h | |
Motor power | 3kw | |
Weight | 190kg | |
Measuring accuracy | ±0.2-0.4% | |
Bag weight qualified rate | >95% | |
Weighing device | Micro-computer | |
Bag pushing device | Automatic push bag | |
Overall dimension (mm) | 1070X670X1030 | |
Air Requirements | 0.4-0.8Mpa(dry compressed air) | |
Application Environment | Operating | 0℃-50℃ |
Storage temperature | -20℃-60℃ |
