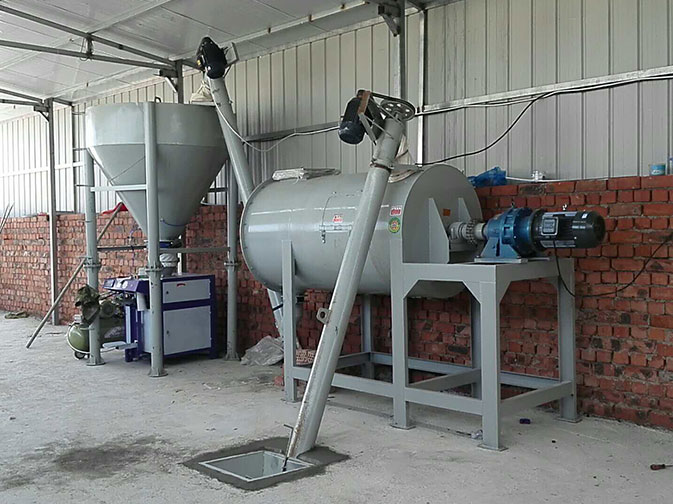

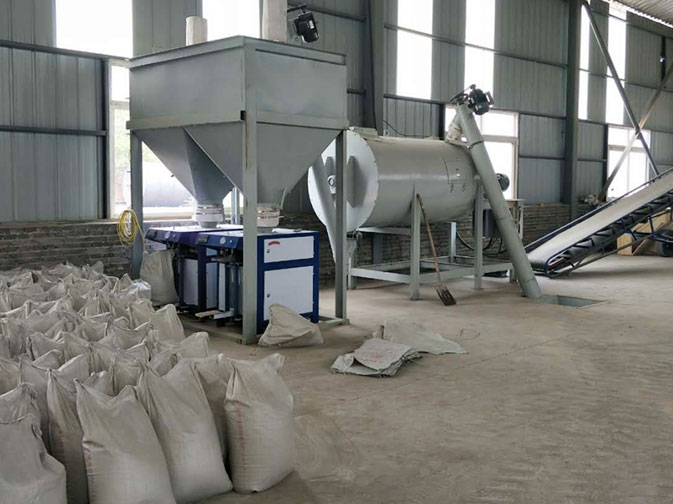

The simple production line consists of feed inlet, 1st screw feeder, dry mixing mortar mixer, dust remover,2nd screw feederand finished product hopper.
Artificial feeding: manual feeding of raw materials and additives into the mouth
To enhance the material: and then through a hoist to lift the material to the mixer
Mixing: mixing machine for the full mixing of materials, about 5-10 minutes
The two lifting material: after the completion of the material, through the two lift, transport to the finished goods warehouse
Finished warehouse: finished warehouse after receiving material, storage
Weighing and packaging: through the outlet of the finished warehouse packaging machine for automatic weighing and packaging.
1. 1st screw feeder: the spiral blade adopts wear-resistant steel, patent sealing device to prevent the bearings into the dust.
2. Mixer main engine: the spiral belt wear resistant steel, long service life; backed by wheel drive settings, to prevent shaft breaking; motor reducer adopts direct type, stable quality, energy saving and environmental protection;
3. 2nd screw feeder: the spiral blade adopts wear-resistant steel, patent sealing device to prevent the bearings into the dust.
4. Finished products silo: Cone design, export with large caliber, rapid discharge.
5. RF-01 Automatic valve bag packing machine: Professional production of valve port packing machine. All electrical components are made of high quality fittings. Automatic metering precision, high efficiency.
6. dust removal system: Dust removal rate of 99%, to ensure that the working environment clean and tidy.
| Model | Host Motor | Capacity（T/H） |
| RJY-1 | 7.5 | 1-3 |
| RJY-2 | 11 | 2-6 |
| RJY-3 | 15 | 3-9 |
| RJY-5 | 22 | 5-10 |
