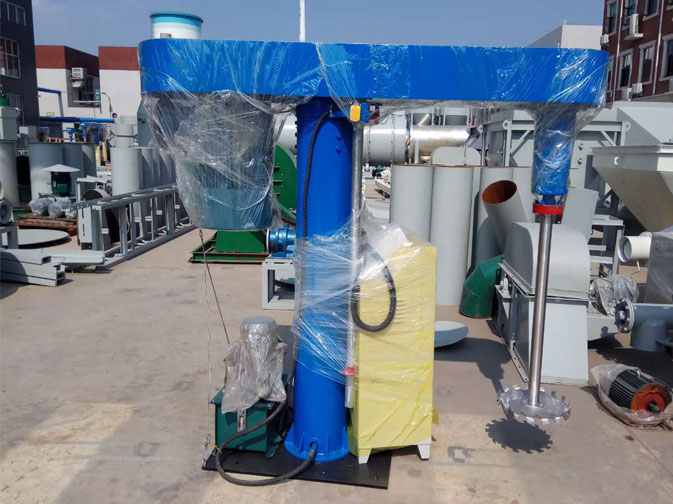

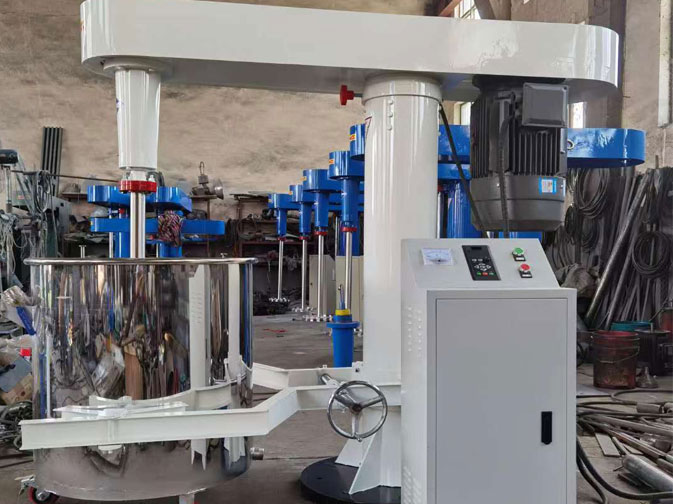

Dispersing Machine

The dispersing machine is mainly suitable for coating, dye, pigment, printing ink, papermaking, adhesive and other chemical industry, stirring, dissolving and dispersing liquid and liquid solid phase material.

Product Description

Description

The dispersing machine is mainly suitable for coating, dye, pigment, printing ink, papermaking, adhesive and other chemical industry, stirring, dissolving and dispersing liquid and liquid solid phase material. When the equipment is stirred and dispersed, the air is sucked in very little, and the mixing and mixing effect is excellent. The mixture can be stirred evenly at low speed, and then dispersed at high speed, which can dissolve the material quickly.

Application

 Name Specification
TD-P 3000

Motor: Ant- explosion Type, Power: 30 kw;

Rotary Speed: 0- 2500rpm (at least 1500 rpm);

Voltage: 380v (3-phase);

Lift Height: 1200 mm (Hydraulic Lifting);

Dispersion Disk Dia.: 400 mm;

Mixing Volume: 3000 L;

Electric Control Box: Inverter with control buttons (You can adjust the rotary speed according to your needs);

Productive power: 3T/h-5T/h;

Size:2400x800x1900(mm)

TD-P 2000

Motor: Ant- explosion Type, Power: 22 kw;

Rotary Speed: 0- 2500rpm (at least 1500 rpm);

Voltage: 440v (3-phase);

Lift Height: 1200 mm (Hydraulic Lifting);

Dispersion Disk Dia.: 300 mm;

Mixing Volume: 2000 L;

Electric Control Box: Inverter with control buttons (You can adjust the rotary speed according to your needs);

Productive power: 2T/h-3T/h

TD-P1000

Motor: Ant- explosion Type, Power: 15 kw;

Rotary Speed: 0- 2500rpm (at least 1500 rpm);

Voltage: 380v (3-phase);

Lift Height: 1000 mm (Hydraulic Lifting);

Dispersion Disk Dia.: 300 mm;

Mixing Volume: 1000 L;

Electric Control Box: Inverter with control buttons (You can adjust the rotary speed according to your needs);

Productive power: 1T/h-1.5T/h

TD-P500

Motor: Ant- explosion Type, Power: 7.5kw;

Rotary Speed: 0- 2500rpm (at least 1500 rpm);

Voltage: 380v (3-phase);

Lift Height: 900mm (Hydraulic Lifting);

Dispersion Disk Dia.: 250 mm;

Mixing Volume: 500 L;

Electric Control Box: Inverter with control buttons (You can adjust the rotary speed according to your needs);

Productive power: 500kg/h-800kg

Mixing Bowl Φ1400x1300mm Capacity:2000L
Mixing Φ1180x1180mm Capacity:1000L
Mixing Bowl Φ900x1030mm Capacity:500L
